Door Latch Adjustment?

Discussion in 'Care & Maintenance' started by Randy, Apr 3, 2017.

  1. Randy

    Randy Junior Ranger Donating Member

    Does anyone know if the cabin door latches can be adjusted? Seems to be harder to fully close and we feel like we need to lock them at night or else we easily kick them open. Locking them (which required getting the latch all the way in the up position) seems to be more difficult too.


  2. Bear

    Bear Junior Ranger

    Howdy Randy,

    If you have new seals around the doors, the latches are harder to work. If you still have the original seals then I am surprised that you have reached this milestone so soon. It took the Stagecoach eleven years for that to occur. I would not only knee the door open in my sleep, I couldn't drive down the road more than 20-40 yards without it popping open on its own. Until I came to terms with the fact that there was no easy solution to making adjustments---that worked---for the model of lock associated with these campers, I'd use bungee cords to keep the door in the closed position. Earlier this month I finally reached out to the boys at Camp-Inn to purchase an all new lock, and they were very accommodating. I had the new lock in a matter of three working days and the cost was a little more than a few cups of coffee. The new lock works like a champ and I'm one happy camper.

    For whatever it is worth, there is my two cents.

    Walk in Beauty,

    Evan likes this.
  3. Inn42

    Inn42 Junior Ranger

    I would echo Bear's thoughts on this. Somehow Alea's door latch can open if someone were to breath on it, while mine isn't too much the worse for wear. If we happen by CICO this year, we'll likely get new latches, as our dog has figured out that the way to get out of the camper is to put a paw on Alea's latch...
  4. Randy

    Randy Junior Ranger Donating Member

    Installed new locks, but still having problems with the ultra door latches. One of my doors flew open on the way home yesterday, I locked it before we left and pulled on it to be sure it was shut tight. One of my little pillows flew out but went back and retrieved it. Out of ideas, there doesn't seem to be any way to adjust the mechanism. Open to suggestions!

  5. fernlane

    fernlane Novice

    use a hammer.

    actually, I'm not kidding. We've had the wind blow our doors shut a number of times hard enough to apparently bend the strike plate in just enough to make the door not latch closed securely. We were in a traffic jam last July on I75 in WV and a lady in the other lane had to point out that our door was open. Happened again before we got the campground.

    Just take that hammer and, from the inside of the trailer, give that plate a whack. Before you do, check out how far the latch engages on the plate. I also like to check the other door for comparison. I can't see how much I'm bending the plate but this always works.

    I *really* wish our door latches would give way like normal doors so the strike plate didn't get bent when the door slams.

    Robert Dickson
    550 #645
    175 nights, 43k miles
    Inn42 likes this.
  6. Randy

    Randy Junior Ranger Donating Member


    I have had doors slam shut (60 MPH windstorm in Joshua Tree) so maybe the strike plate is the problem. Thanks you, I'll give that a try!,

  7. GhostOrchid

    GhostOrchid Novice

    Have had a similar experience with a wind-driven slam bending the striker plate to the point that door was unable to fully latch/lock. At Cary's suggestion, I took the striker plate off and bent it back into position using a bench vise. You can whack it with a mallet from the inside while still attached, but doing it that way puts a strain on the screws.

    Our driver's side door latches when slammed; the passenger side door doesn't. Tolerances must be pretty close.
  8. Randy

    Randy Junior Ranger Donating Member

    Thanks for that advice! I will do just that.



  9. Randy

    Randy Junior Ranger Donating Member

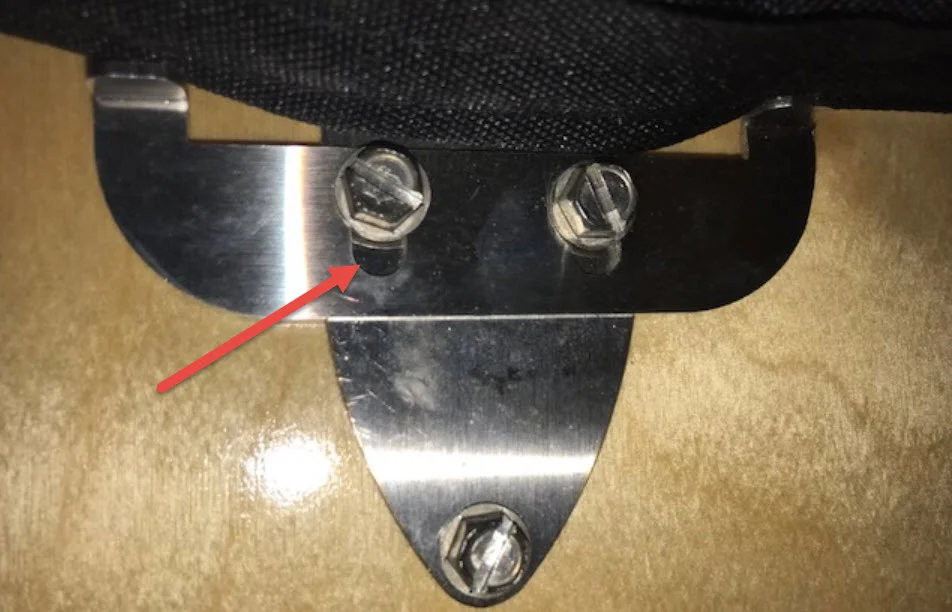

    I think I may have solved my door latch problems without resorting to bending the strike plate. As you can see in the picture, the "mounting" plate appears to have slid back from it's original position. I simply loosened the two screws and forced the plate as far forward as possible with the head of a screwdriver and re-tightened. The doors now seem to close much easier and tighter.

    Wish I would have noticed this before buying replacement handles, but now I have an extra set if these ever wear out. Thanks for all of the suggestions, hope this helps someone else.


    LisaNKevin likes this.
